Enemy/Weld/Billet Specialties Titanium 12P Bead Lock 3 pce Kit - #600+

These are made just for High Performance Vehicles with a Bead Lock attachment on there wheels.

This 3 piece kit replaces the standard steel/carbon steel setup that come standard with those wheels.

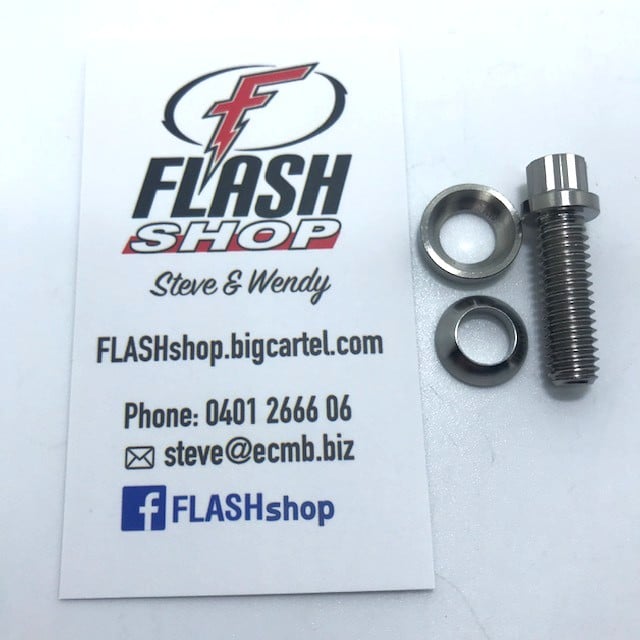

Made from Titanium (1 x bolt and 2 x washers) TC4 - GR5.

Reduce your 'Driven Weight' considerably.

Each 3 piece kit weighs 6.53 grams.

Specifications are;
* 5/16 UNC Thread (5/16 - 18 Coarse).

* Threaded length of bolt is 25.55mm from under flange.

* Bolt overall length is 34.55mm

* Flange on bolt is 11.75mm

* O.D. of largest washer is 15.80mm

* Both washers together (NOT under tension) is 5.10mm

Most wheel manufacturers have there own idea on how many bolts to use, just double check how many you need.

Sold 1 at a time, so you can get all your outers possibly done or both outers and insides at the same time.

These are a 'Natural Titanium' colour.

REMEMBER......Titanium is NON forgiving, so suggestion when you first screw them into the rim (Titanium into Aluminium) put a bit of lube...Never Seize etc.....onto the bolt thread 'at the bottom of the thread'.

On Ebay, I have to list these at $4.25 each.....as they rip off with there fees......sorry about that.

CHECK YOUR THREAD!!!!!!

I have put up a lot of pics to give you an idea of the units, if your not sure, just give me a holler on 0401 2666 06.

CC-9734 - A
