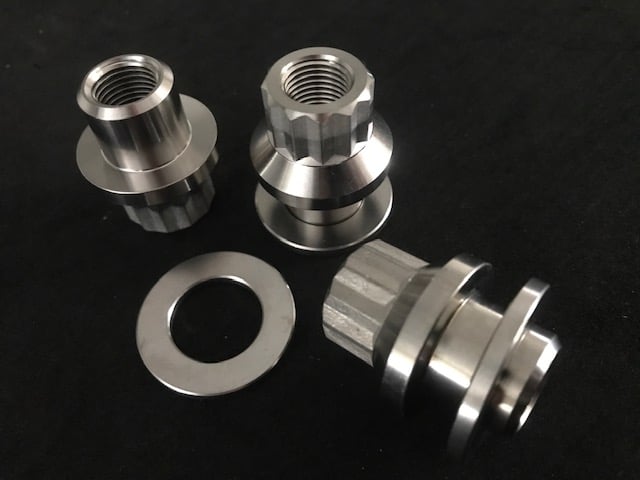

#509 FORD 1/2 UNF 'Mag Wheel' stepped nuts- Titanium.
AUD14.00
These are made from TC4 GR5 Titanium with a thread of 1/2 x 20 to suit Ford wheel studs BUT for a Mag Wheel type center, meaning these have a 'Shank'.
Specs are;
Overall length of whole nut, top to bottom - 34mm
Shank O.D. is - 17.3mm
Shank length is - 14.5mm including taper on bottom with NO washer.
Washer is 30.10 diameter x 3mm thick.
Diameter of fixed washer area on base of nut - 28mm
Height from under washer to top of taper under 12 point - 22mm
Height of 12 point section - 11mm approx
Suit 11/16 or 17mm sockets.
Weight is - 30.5 grams

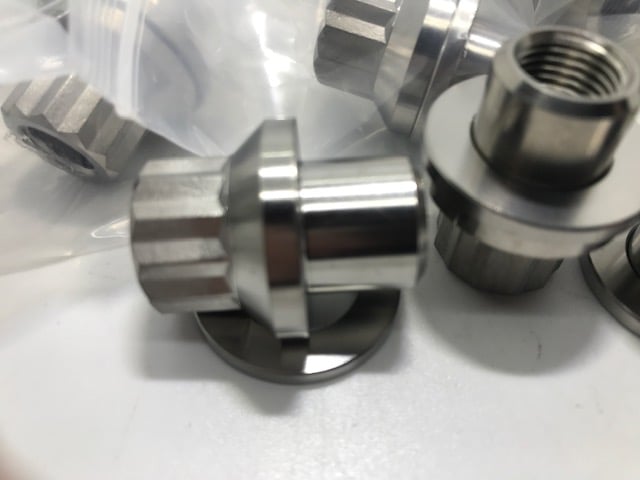

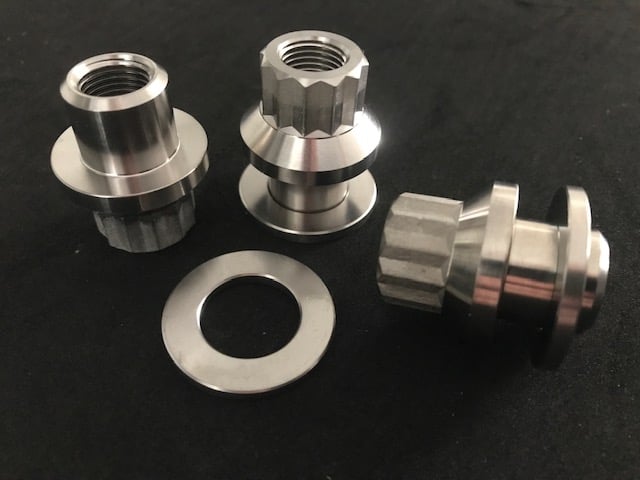

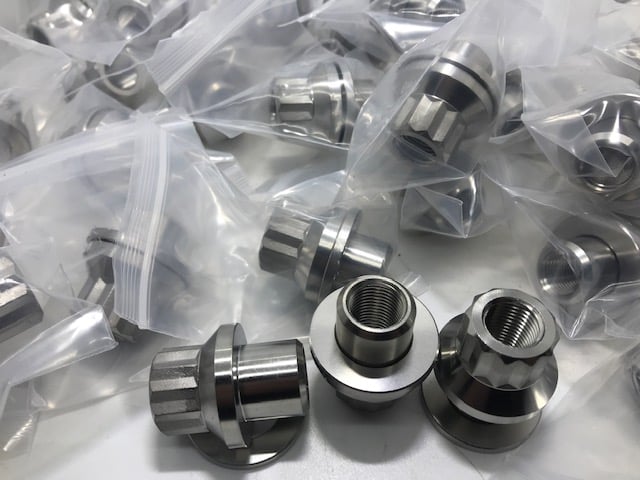

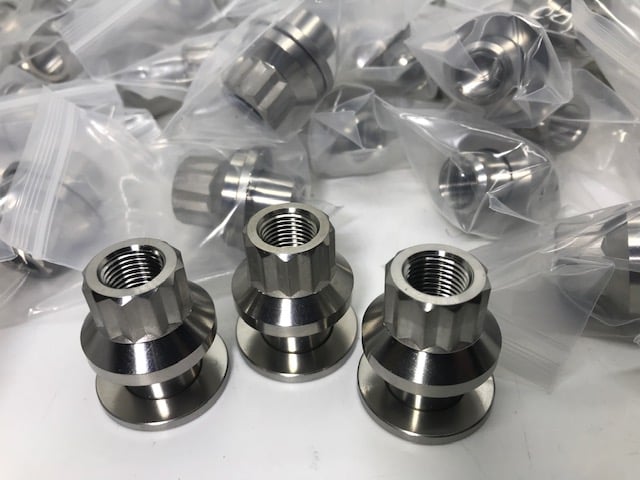

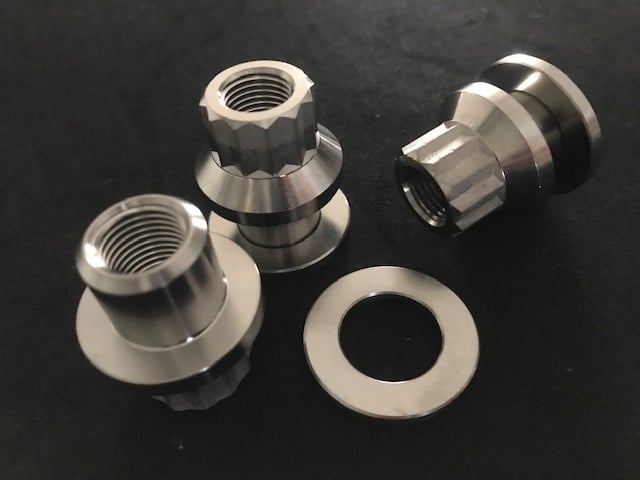

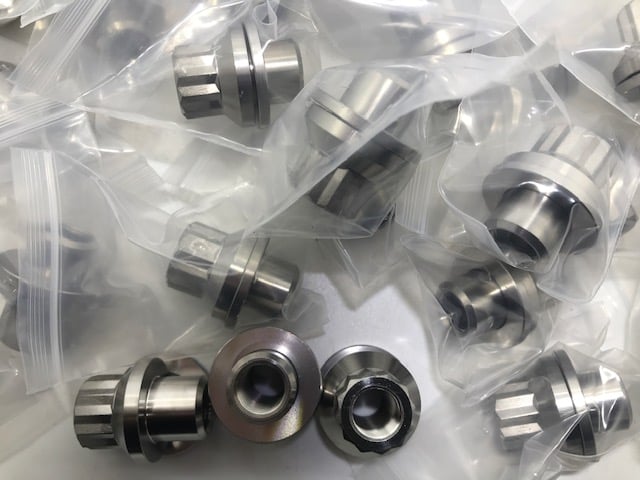

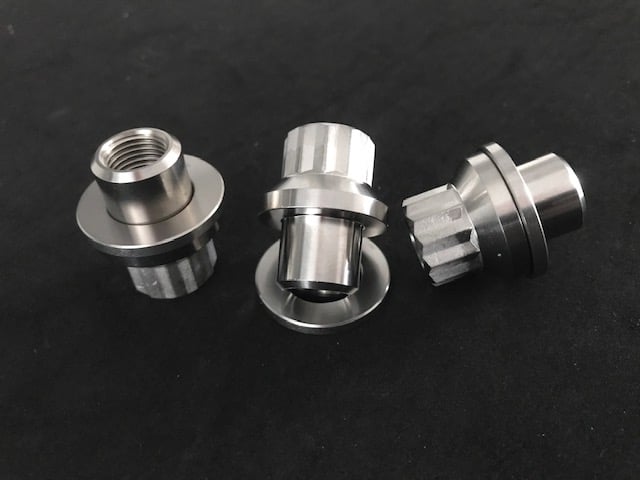

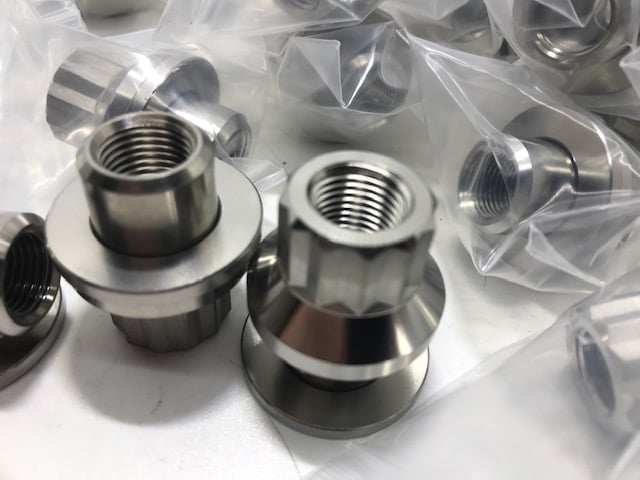

I have put a lot of pics up so you may be able to get an idea of what you need to see, if not just give me a call on 0401 2666 06.
